POS Omnichannel SDK

The main goal is to have an easy to integrate SDK, that allows you to create a transaction from your point-of-sale software using a POS terminal.

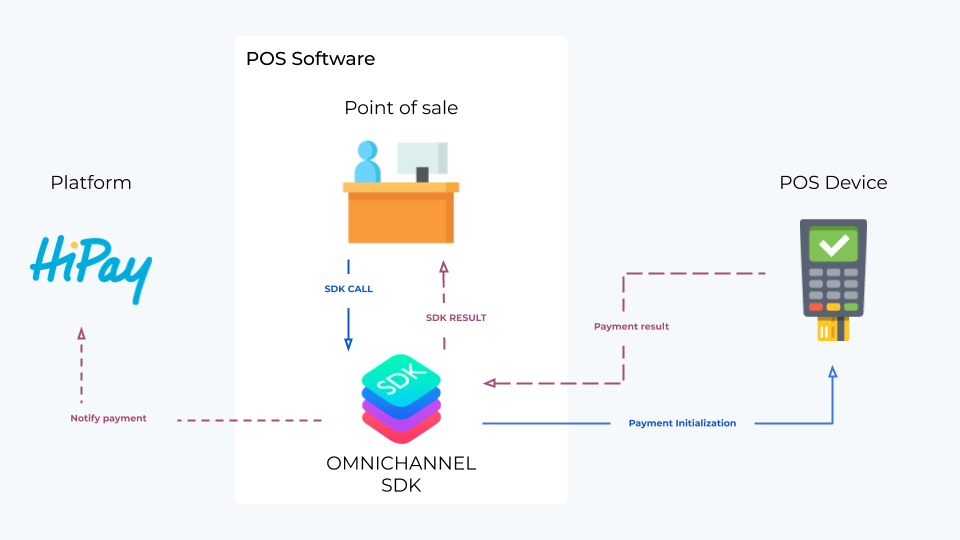

      1. The point-of-sale software sends a request payment to the Omnichannel SDK.
      2. SDK initialize the payment on the POS Terminal e.g the amount is displayed on the screen and the customer should process the payment.
      3. POS Terminal sends the result payment to the Omnichannel SDK in its format.
      4. Omnichannel SDK sends the result to the point-of-sale software with a custom object.
      5. Transaction request is sent to HiPay’s server
      6. Result of the transaction request

Requirements

    • Android 5.0 Lollipop (API 21) or later
    • Android Studio 4.1 or later
    • POS terminal with Concert protocol version 3.1 or 3.2
    • iOS 11 or later
    • XCode 12 or later
    • Cocoapods 1.10 or later
    • POS terminal with Concert protocol version 3.1 or 3.2

Installation

HiPay’s Android Omnichannel SDK is hosted on hipay.com. In order to install it, you have to add these lines to your Build.gradle Projet file :
allprojects {
    repositories {
        maven {
            url "https://artifactory.hipay.com/repository/maven-public/"
        }
    }
}
Then, add this line in your build.gradle file of the module app :
dependencies {
    implementation 'com.hipay:hipay-omnichannel-concertv3:2.0.0'
}
You have to use CocoaPods to install the HiPay Omnichannel SDK for iOS. CocoaPods is a dependency manager for Swift and Objective-C Cocoa projects. CocoaPods is built with Ruby and it will be installable with the default Ruby available on macOS. Install it with this command if you haven’t done before :
sudo gem install cocoapods
Then, execute this command at the root of your project to initialize the required files :
pod init
Add this line to your project’s Podfile:
pod 'HiPayOmnichannelConcertV3'
Then, run the following command in the same directory as your Podfile.
pod install
Open the Xcode workspace (*.xcworkspace) instead of the project file.

Initialization

First of all, to use the SDK, you have to set the Configuration object. An exception is thrown if your configuration is not set correctly.

authorizationThresholdWhen the amount is above this threshold, the authorization is set to true valueFloate.g. 100.00

Variable nameDescriptionTypeValuesDefault value
protocolProtocol version (V3.1, V3.2)Enum

ConcertV31

ConcertV32

ConcertV31
host*Terminal IPv4 address or domain nameStringe.g. “192.168.1.10”
e.g. “your.domain.com”

portTerminal port (1-65535)Integer 8888
contracts*List of contractsContract arraySee Contract section
apiUsername*Public HiPay API username used by authenticationStringe.g. “123456789.stage-secure-gateway.hipay-tpp[.]com”
apiPassword*Public HiPay API password used by authenticationStringe.g. “Test_AB1234578903bd5eg”
environmentEnvironment in which the transaction is going to be createdEnum

production

stage

production
authorizationThresholdWhen the amount is above this threshold, the authorization is set to true valueFloate.g. 100.00
debugEnable debug mode (display all prints)Boolean False
healthCheckFrequency

Delay between health check in seconds (To disable this feature, set 0)

Only on Android

Integer
healthCheckCallback

if healthCheckFrequency is set, you will receive a response every x seconds to get a boolean regarding the POS status.

Only on Android

Callback
deviceSerialNumber

Serial number of the terminal (Required for health check feature)

Only on Android

String

* Mandatory parameters

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        ArrayList contracts = new ArrayList();
        contracts.add(new Contract("1234567",
                                   "001",
                                   "005"));

        contracts.add(new Contract("1234568",
                                   "001",
                                   "005"));

        HealthCheckCallback healthCheckCallback = new HealthCheckCallback() {
            @Override
            public void getTerminalStatus(boolean isUp) {
                // Check the status
            }
        };

        try {
            Configuration.getInstance().setConfiguration(
                    Protocol.CONCERTV32,
                    "192.168.1.1",
                    8888,
                    "username",
                    "password",
                    Environment.STAGE,
                    10.0f,
                    contracts,
                    true,
                    10,
                    healthCheckCallback,
                    "123456",
                    this
            );

        } catch (InvalidHostException e) {
            // Handle invalidIpAddressException
        } catch (InvalidPortException e) {
            // Handle InvalidPortException
        } catch (InvalidUsernamePasswordAPIException e) {
            // Handle InvalidUsernamePasswordAPIException
        } catch (InvalidContractsException e) {
            // Handle InvalidContractsException
        }
    }
}
import HiPayOmnichannelConcertV3

func application(_ application: UIApplication, didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?) -> Bool {
    // Override point for customization after application launch.

    var contracts = [Contract]()
    contracts.append(Contract(merchantContract: "1234567",
                              rank: "005",
                              acquirerCode: "222",
                              paymentApplication: "001"))
    contracts.append(Contract(merchantContract: "1234568",
                              rank: "005",
                              acquirerCode: "222",
                              paymentApplication: "001"))

    do {
        try Configuration.shared.setConfiguration(protocolVersion: .ConcertV32,
                                                  host: "192.168.1.1",
                                                  port: 8765,
                                                  apiUsername: "username",
                                                  apiPassword: "password",
                                                  contracts: contracts,
                                                  environment: .Stage,
                                                  authorizationThreshold: 10.0,
                                                  debug: true)

    } catch ConfigurationError.invalidHost {
        // Invalid Host
    } catch ConfigurationError.invalidPort {
        // Invalid Port
    } catch ConfigurationError.invalidUsernamePasswordAPI {
        // Invalid API password or API Username
    } catch ConfigurationError.invalidContract {
        // Invalid Contract
    } catch {

    }

    return true
}

Contract

To finalize the configuration, you have to create an array of your contracts (at least one contract). Each contract object contains a few information.
Variable name Description Type Values
merchantContract* Merchant Identification Number String e.g. “123456”
rank* Rank of your POS terminal String e.g. “001”
paymentApplication Payment application identifier String e.g. “007”
* Mandatory parameters
Contract contract = new Contract("4988652",
                                 "001",
                                 "005");
let contract = Contract(merchantContract: "4988652",
                        rank: "005",
                        acquirerCode: "002",
                        paymentApplication: "001")

Request Payment

For each payment, you have to create a RequestPayment object with theses variables below. When your RequestPayment is created, you execute it with the corresponding iOS method execute() or Android method execute(this). Your class has to conform to the RequestPaymentDelegate delegate to receive a response.

Variable nameDescriptionTypeValuesDefault
amount*Total order amount, calculated as the sum of purchased items, plus shipping fees (if present), plus tax fees (if present).Floate.g. 9.99
transactionTypeType of transaction to be processedEnum


Debit

Credit

Cancellation

Debit
forceAuthorizationWhether the authorization should be forced or not. Overwrites the authorizationThreshold parameter to enable authorizationBoolean False
currencyISO 4217 alpha currency code (More information)Enum

EUR

USD

EUR
orderIdOrder number of your request payment. If you don’t send an identifier, we will generated it for youStringe.g. “Order_12345”
cart**Cart object (More information)Cart
customerCustomer’s information object (id, firstName, lastName, email)Customer
customDataCustom data (only value type Bool / Int / Float / String are accepted)Dictionary
receiptSendingOptionWhich channel for sending receipt (only with Concert 3.2)Enum

All

SMS

Email

All

* Mandatory parameters

** If the cart content is not correctly fulfilled or doesn’t match the total amount of the order, the order will be created with an empty cart.

@Override
public void onClick(View view) {
    try {
        RequestPayment requestPayment = new RequestPayment(
                98.80f,
                TransactionType.TRANSACTION_TYPE_DEBIT,
                false,
                Currency.EUR,
                "order_12345",
                null,
                null,
                null);

        requestPayment.execute(this);
    } catch (InvalidAmountException e) {
        // Handle InvalidAmountException
    }
}
@IBAction func payTapped(_ sender: Any) {
  do {
        let requestPayment = try RequestPayment(amount: 98.80,
                                                transactionType: .Debit,
                                                forceAuthorization: false,
                                                currency: .EUR,
                                                orderId: "order_12345",
                                                cart: nil,
                                                customer: nil,
                                                customData: nil)

        requestPayment.delegate = self
        requestPayment.execute() // Request execution
      } catch RequestPaymentError.invalidAmount {
          // handle invalid amount
      } catch {
          // Others
      }
}

Cart

You can add the cart of the transaction, creating an Item for each article ( More informations about cart ).

Item table = new Item("A2343SSS",
        ItemType.GOOD,
        "Table",
        2,
        30.50f,
        0.0f,
        58.00f);
table.setDiscount(-3.00f);
table.setProductCategory(ItemProductCategory.HOME_APPLIANCES);
table.setEuropeanArticleNumbering("4711892728946");
table.setImageUrl("https://wwww.hipay.com");

Item chair = new Item("B7762NN",
        ItemType.GOOD,
        "Chair",
        4,
        10.20f,
        0.0f,
        40.80f
);
chair.setProductCategory(ItemProductCategory.HOME_APPLIANCES);
chair.setProductDescription("A wooden chair");
chair.setEuropeanArticleNumbering("4713716322385");
chair.setImageUrl("https://wwww.hipay.com");

ArrayList itemArrayList = new ArrayList();
itemArrayList.add(table);
itemArrayList.add(chair);

Cart cart = new Cart(itemArrayList);
/// Cart
var cart = Cart()
var table = Item(productReference: "A2343SSS",
               type: .Good,
               name: "Table",
               quantity: 2,
               unitPrice: 30.50,
               taxRate: 0.0,
               totalAmount: 58.00)
table.discount = 3.00
table.productCategory = .HomeAppliances
table.europeanArticleNumbering = "4711892728946"
table.imageUrl = "https://www.hipay.com/yourImage"

var chair = Item(productReference: "B7762NN",
               type: .Good,
               name: "Chair",
               quantity: 4,
               unitPrice: 10.20,
               taxRate: 0.0,
               totalAmount: 40.80)
chair.productCategory = .HomeAppliances
chair.productDescription = "A wooden chair"
chair.europeanArticleNumbering = "4713716322385"
chair.imageUrl = "https://www.hipay.com/yourImage"

cart.items.append(table)
cart.items.append(chair)

Customer

You can set all personal information such as his email, first name, last name, a unique identifier, address, city, country…

// Customer
Customer customer = new Customer("1234",
                                 "John",
                                 "Doe",
                                 "[email protected]",
                                 "0602020202",
                                 "1",
                                 "1 rue John Doe",
                                 "Appt 202",
                                 "75000",
                                 "Paris",
                                 null,
                                 "France");
/// Customer
let customer = Customer(id: "1234",
                        firstName: "John",
                        lastName: "Doe",
                        email: "[email protected]",
                        mobilPhone: "0602020202",
                        houseNumber: "1",
                        streetAddress: "1 rue John Doe",
                        streetAddress2: "Flat 101",
                        zipCode: "75000",
                        city: "Paris",
                        state: nil,
                        country: "France")

Custom data

In the custom data parameter, you can set all the values of you want to retrieve in HiPay’s backoffice.

HashMap customData = new HashMap();
customData.put("foo1", "foo2");
customData.put("price", 12.30);
customData.put("event", 34);
customData.put("newCustomer", true);
/// Custom data
var customData = [String:Any]()
customData["foo1"] = "foo2"
customData["price"] = 12.30
customData["event"] = 34
customData["newCustomer"] = true

Payment Response

After the transaction has been processed through the HiPay’s servers, you will receive a response from the Omnichannel SDK.

@Override
public void onFinish(ResponsePayment responsePayment) {
    if (responsePayment.getPaymentStatus() == PaymentStatus.SUCCESS) {
        // Handle success response
    }
    else {
        // Handle failed response
    }
}
class ViewControlller: UIViewController, RequestPaymentDelegate {

  // ... code example above

  // Mandatory function from RequestPaymentDelegate delegate
  func requestDidEnd(_ response: ResponsePayment) {
        print(response)

        if (response.paymentStatus == .Success) {
            // Handle Success
        }
        else {
            // Handle Failure
        }
  }
}

The below table describes the ResponsePayment object properties, notice that all these properties are in read-only :

Variable nameDescriptionTypeValues
paymentStatusStatus received from the TPE regarding the payment.EnumSuccess

Failure
errorDescriptionError descriptionStringe.g. : “The network is unavailable”
errorCodeError codeStringe.g. : “1003”
amountAmount of the transactionFloate.g. : 98.80
currencyISO 4217 alpha currency codeEnume.g. : .EUR
orderIdOrder numberStringe.g. : “order_12345”
notificationHipaySentIndicates whether Hipay has been notified of the transactionBooleane.g. false
customerPersonal information of the customerCustomer
receipt

Receipt encoded in Base64

Stringe.g. “UkVDRUlQVCA5OSBFVVI==”

Payment Example

Here you have a complete example of the code needed to request a payment and handle its response.

// All your imports
public class MainActivity extends AppCompatActivity implements View.OnClickListener, RequestPaymentDelegate {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        ArrayList contracts = new ArrayList();
        contracts.add(new Contract("1234567",
                                   "001",
                                   "005"));

        contracts.add(new Contract("1234568",
                                   "001",
                                   "005"));

        HealthCheckCallback healthCheckCallback = new HealthCheckCallback() {
            @Override
            public void getTerminalStatus(boolean isUp) {
                // Check the status
            }
        };

        try {
            Configuration.getInstance().setConfiguration(
                    Protocol.CONCERTV32,
                    "192.168.1.1",
                    8888,
                    "username",
                    "password",
                    Environment.STAGE,
                    10.0f,
                    contracts,
                    true,
                    10,
                    healthCheckCallback,
                    "123456",
                    this
            );

        } catch (InvalidHostException e) {
            // Handle invalidIpAddressException
        } catch (InvalidPortException e) {
            // Handle InvalidPortException
        } catch (InvalidUsernamePasswordAPIException e) {
            // Handle InvalidUsernamePasswordAPIException
        } catch (InvalidContractsException e) {
            // Handle InvalidContractsException
        }
    }


    @Override
    public void onClick(View view) {

        // Cart
        Item table = new Item("A2343SSS",
                              ItemType.GOOD,
                              "Table",
                              2,
                              30.50f,
                              0.0f,
                              58.00f);
        table.setDiscount(-3.00f);
        table.setProductCategory(ItemProductCategory.HOME_APPLIANCES);
        table.setEuropeanArticleNumbering("4711892728946");
        table.setImageUrl("https://wwww.hipay.com");


        Item chair = new Item("B7762NN",
                              ItemType.GOOD,
                              "Chair",
                              4,
                              10.20f,
                              0.0f,
                              40.80f
        );
        chair.setProductCategory(ItemProductCategory.HOME_APPLIANCES);
        chair.setProductDescription("A wooden chair");
        chair.setEuropeanArticleNumbering("4713716322385");

        ArrayList itemArrayList = new ArrayList();
        itemArrayList.add(table);
        itemArrayList.add(chair);

        Cart cart = new Cart(itemArrayList);

        // Customer
        Customer customer = new Customer("99",
                                         "John",
                                         "Doe",
                                         "[email protected]",
                                         null,
                                         null,
                                         null,
                                         null,
                                         null,
                                         null,
                                         null,
                                         null
        );

        // CustomData
        HashMap customData = new HashMap();
        customData.put("foo1", "foo2");
        customData.put("price", 12.30);
        customData.put("event", 34);
        customData.put("newCustomer", true);

        try {
            RequestPayment requestPayment = new RequestPayment(
                    98.80f,
                    TransactionType.TRANSACTION_TYPE_DEBIT,
                    false,
                    Currency.EUR,
                    "order_12345",
                    cart,
                    customer,
                    customData,
                    ReceiptSendingOption.EMAIL
            );
            requestPayment.execute(this);
        } catch (InvalidAmountException e) {
            // Handle InvalidAmountException
        }
    }

    @Override
    public void onFinish(ResponsePayment responsePayment) {
        if (responsePayment.getPaymentStatus() == PaymentStatus.SUCCESS) {
            // Handle success response
        }
        else {
            // Handle failed response
        }
    }
}
import UIKit
import HiPayOmnichannelConcertV3

class ViewController: UIViewController, RequestPaymentDelegate {
    override func viewDidLoad() {
        super.viewDidLoad()
        // Do any additional setup after loading the view.
    }

    @IBAction func payTapped(_ sender: Any) {

        /// Cart
        var cart = Cart()
        var table = Item(productReference: "A2343SSS",
                         type: .Good,
                         name: "Table",
                         quantity: 2,
                         unitPrice: 30.50,
                         taxRate: 0.0,
                         totalAmount: 58.00)
        table.discount = 3.00
        table.productCategory = .HomeAppliances
        table.europeanArticleNumbering = "4711892728946"
        table.imageUrl = "https://www.hipay.com/yourImage"


        var chair = Item(productReference: "B7762NN",
                         type: .Good,
                         name: "Chair",
                         quantity: 4,
                         unitPrice: 10.20,
                         taxRate: 0.0,
                         totalAmount: 40.80)
        chair.productCategory = .HomeAppliances
        chair.productDescription = "A wooden chair"
        chair.europeanArticleNumbering = "4713716322385"

        cart.items.append(table)
        cart.items.append(chair)

        /// Customer
        let customer = Customer(id: "1234",
                                firstName: "John",
                                lastName: "Doe",
                                email: "[email protected]")

        /// Custom data
        var customData = [String:Any]()
        customData["foo1"] = "foo2"
        customData["price"] = 12.30
        customData["event"] = 34
        customData["newCustomer"] = true

        do {
            let requestPayment = try RequestPayment(amount: 98.80,
                                                    transactionType: .Debit,
                                                    forceAuthorization: true,
                                                    currency: .EUR,
                                                    orderId: "order_12345",
                                                    cart: cart,
                                                    customer: customer,
                                                    customData: customData,
                                                    receiptSendingOption: .Email)

            requestPayment.delegate = self
            requestPayment.execute() // Request execution
        } catch RequestPaymentError.invalidAmount {
            // handle invalid amount
        } catch {
            // Others
        }
    }

    func requestDidEnd(_ response: ResponsePayment) {
        // Handle the reponsePayment object
        print(response)

        if (response.paymentStatus == .Success) {
            // Handle Success
        }
        else {
            // Handle Failure
        }
    }
}

Error Codes

Should an error occur, here is a list of all the possible related codes and descriptions.

CodeDescription
1000An unknown error occurred
1001

Timeout expired

This error pops up when the whole payment process takes longer than 180 seconds.

1002Authentication failed with HiPay
1003The network is unavailable
1004POS terminal Not Connected
1005Parsing transaction status failed
1006

Cancelled transaction (REASON).

There are more than 15 reasons why the transaction can be cancelled. The most common ones are cancelling the transaction on the terminal and the customer taking too long to pay.

1007Parsing received frame failed
1008Parsing created frame from POS terminal failed
1009Unknown MID
